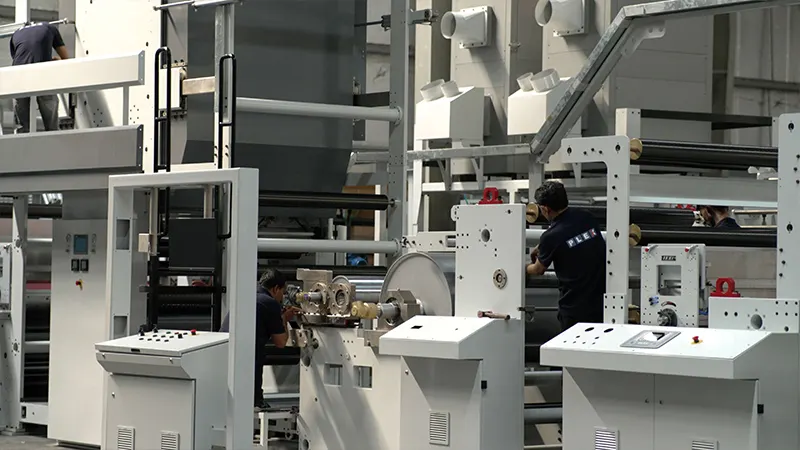

Plex Machines is an Indian entity engaged in manufacturing extrusion coating & lamination lines.
Plex is the first Indian company to design & install an extrusion coating & lamination line with 350 mtrs/min. speed.
We design & build high-quality extrusion coating & lamination lines that deliver outstanding performance in producing multi-layer composite structures for various flexible packaging applications.
The compact & clean design and user-friendly features enable optimum performance & higher machine uptime.
Products
Rotogravure Printing Lines
Extrusion Coating & Lamination Lines
ECL Series
Key Features:
- Clean & Ergonomically Designed
- High Quality Components
- Best Cost Performance Ratio
- Single Screen Control System with SCADA
- Industry 4.0 Compliant
- Optimal Space Requirement

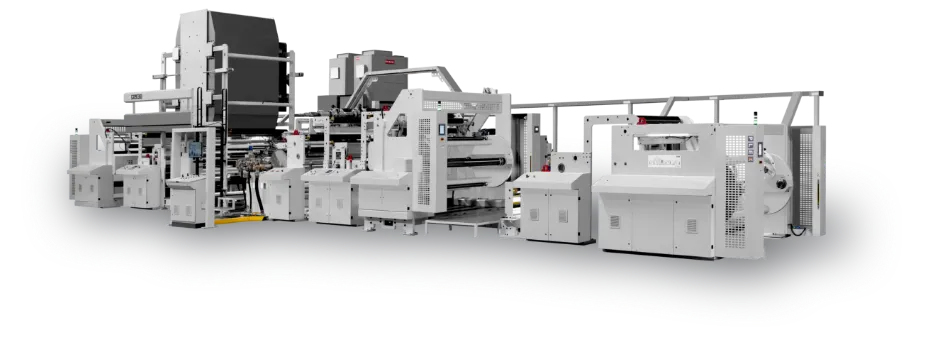

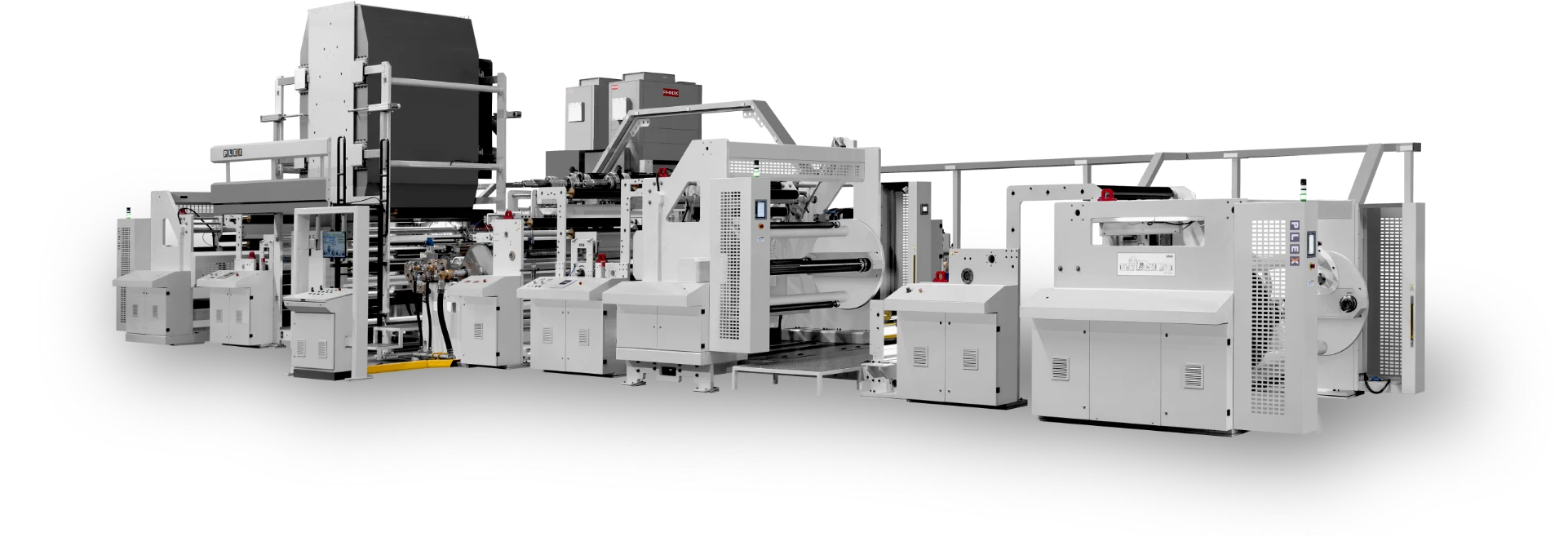

PLEX - ECL Series of Extrusion Coating & Lamination Lines
| Substrates | BOPET Film, BOPP Film, BOPA Film, Paper, Aluminium Foil, Metallised Film, Barrier Film, etc. |
|---|
| Extrusion Materials | LDPE, PP, EAA, EVA, etc. |
|---|
Technical Specifications
| ECL 250 | ECL 350 | |
|---|---|---|
| Operating Line Speed | 250 Mtrs./Min. | 350 Mtrs./Min. |
| Min/Max Web Width | 700 mm / 1300 mm | 700 mm / 1300 mm |
| Min Coating Thickness | 8 GSM | 8 GSM |
| Max Coating Thickness | 40 GSM* | 40 GSM* |
| Turret Reel Dia. | 800 mm | 1000 mm |
| Drying Length | 5000 mm | 6500 mm |
| Drying Method | Semi Floatation | Semi Floatation |
| Chill Roll Dia. | 700 mm | 800 mm |
| Print Repeat Measurement | __ | Standard |
| CCTV Camera for Turrets | __ | Standard |
| Chill Roll Surface Temp Indication | __ | Standard |
| Remote Connectivity | Standard | Standard |
| Energy Monitoring System | Optional | Standard |
